Gameplay Tutorial

Introducing gameplay components

Inventory

Inventory is a place where you store and manage items in games.

Enabling/disabling Inventory

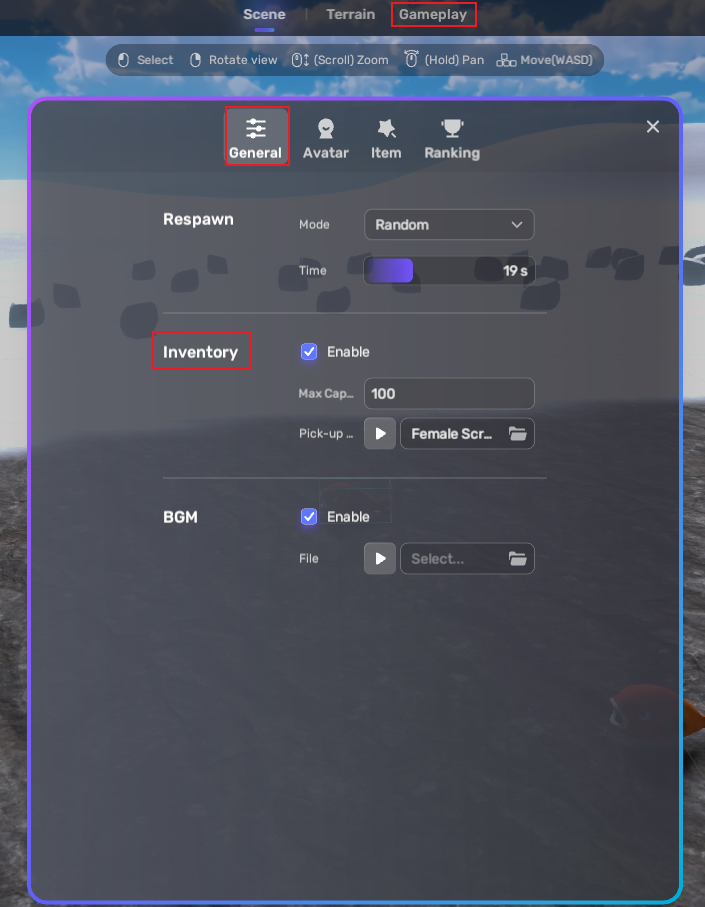

Inventory is enabled by default. To disable it, choose Gameplay>General>Inventory and untick the box of Enable.

Configuring your Inventory

You can set the maximum capacity for your inventory, ranging from 20 to 100, and select the music clip that plays when you collect an item.

inventory-configure

Throwing items out of your Inventory

In Play mode, when the items you collected reach the maximum capacity, you can’t collect items anymore. Sometimes throwing some items out of your inventory could be a choice. To throw items, choose the Inventory icon at the right top corner, choose Throw, and specify the number of items to throw.

Ranking

Ranking allows you to add a leaderboard to your games.

Enabling/disabling ranking

Ranking is disabled by default. If you want to enable it, choose Gameplay>Ranking>+New Ranking.

Configuring the leaderboard

You can set the following fields for your leaderboard.

rankin-configure

Field Description
Name A name for your leaderboard
Rule Determines the metric used to arrange the ranking.
  • Number of items, the total number of items that players collect in the game
  • Play time, the total time that players spend in the game
  • Obtain time of items, the total time it takes before the specified item is collected|
    |Item|Specifies the item used in the ranking. It works only when you choose Number of items or Obtain time of items for your rule.|
    |Capacity|Determines the length of the ranking.|
    |Description|Introduces the leaderboard to your players.|

Respawning

Respawning is the process of a player reappearing in the game after dying.

Finding your spawn point

YAHAHA provides you with a spawn point where your players spawn the first time they enter into your game. The spawn point cannot be moved, but it can never be deleted. To find the spawn point, go to Explorer and choose Respawn points.

Note: Your avatar always spawns at the default spawn point when you switch from Edit mode to Play mode.

Adding respawn points

You can add respawn points to let your players spawn after dying. To add respawn points, select the object you want to attach the respawn point to, choose more>Gameplay>Respawn Point.

Configuring your respawn point

When you have several respawn points, you can specify one of the following rules to determine the next repawn point after dying:

  • Default, the next respawn point is always the one that YAHAHA provides
  • Random, the next respawn point is chosen randomly among all respawn points, including the one that YAHAHA provides.
  • Nearest, the next respawn point is the one that is closest to the point where the player dies.

Item

Items are game assets that you can use to decorate the scene and interact with players.

Creating an item

To create an item:

  1. choose Gameplay>Item>New Item.

  1. Populate the following fields.
Field Description
Name The name of the item
ID A unique identifier for the item
Model The model for the item. These models are what you purchased from Asset Library.
Description Briefly introduces the item.

Managing items

When you have too many items, you can search for your items with keywords. You can also sort your items by the data of creation or alphabetically.

sort-item

When you don’t need an item anymore, you can select it and delete it.

Audio

Your space is more interesting and immersive with music and sound effects.

Setting up background music(BGM)

BGM is the music you can hear when you switch to Play mode and it can be heard wherever you go in the scene. BGM is enabled by default in YAHAHA Studio, but you need to specify the audio clip to make it work, as follows:

  1. Find BGM by choosing Gameplay>General.

  1. Select an audio clip as your BGM.

select-BGM

Adding audio clips to an object

To attach audio clips to an object:

  1. Select the object and view its properties by choosing the More icon.

  1. In the Gameplay tab, choose +Component>Audio to add the Audio component.

  1. Add audio to the component. You can add multiple audio clips.

add-multiple-audio

Field Description
Audio file The file of the audio to add
Audible range The range in which the audio can be heard. The range is a circle with the radius ranging from 1 to 100 meters.
Loop Determines whether the audio plays in loop mode.
Trigger Determines the trigger of the audio.
  • On start, the audio plays as soon as you switch to Play mode
  • On trigger, the audio plays when the player touches the object|

Mechanics

YAHAHA Studio allows you to add mechanics, such as rotate, revolve, move and retroact, to your game by adding and configuring gameplay components.

Adding mechanics gameplay components to your objects

  1. Select the object and view its properties by choosing the More icon.
  2. In the Gameplay tab, choose +Component and you can add the Rotate/Revolve/Move/Retroaction component.

Rotate

The Rotate component makes an object move in a circle around the axis of rotation.

Field Description
Condition Determines the trigger of rotation.
  • On start, starts rotation when you enter Play mode.
  • Touched by player, starts rotation when the object is touched by the player.|
    |Rotation Type|Determines the type of rotation, either Circle or Arc. Specify the angle if you choose Arc.|
    |Axis|Determines the axis of rotation.|
    |Direction|Determines the direction of the circular movement.|
    |Time|Time to finish a circle or an arc in second.|
    |Rotation NO|Specifies the number of rotation.|
    |Loop type|Determines the loop type, either One-way or Two-way. If you choose One-way, the object rotates in the same direction. If you choose Two-way, the rotation direction changes to the opposite whenever the previous circle/arc movement finishes.|

Revolve

The Revolve component makes an object move in a circle around a central axis.

Field Description
Condition Determines the trigger of revolve.
  • On start, starts revolving when you enter Play mode.
  • Touched by player, starts revolving when the object is touched by the player.|
    |Revolving Type|Determines the type of revolve, either Circle or Arc. Specify the angle if you choose Arc.|
    |Rotate point|The central point of revolve|
    |Axis|The central axis of revolve|
    |Direction|Determines the direction of the circular movement.|
    |Time|Time to finish a circle or an arc in second.|
    |Rotation NO|Specifies the number of revolving.|
    |Loop type|Determines the loop type, either One-way or Two-way. If you choose One-way, the object revolves in the same direction. If you choose Two-way, the revolving direction changes to the opposite whenever the previous revolve finishes.|

Move

The Move component makes an object move along specified positions in the scene.

Field Description
Trigger Condition Determines the trigger of movement.
  • On start, starts moving when you enter Play mode.

  • Touched by player, starts moving when the object is touched by the player.|
    |Start/Relative position|Specifies the position for the object to start off.

  • Point, the point on the coordinate where the object starts moving.

  • Stay time, the time that the object stays when it reaches the point.

  • Move speed, the speed of moving to the next point.|
    |Move NO|Specifies the number of movement.|
    |Loop type|Determines the loop type, either One-way or Two-way. If you choose One-way, the object always moves in the same direction. If you choose Two-way, the movement direction changes to the opposite whenever the previous movement finishes.|

Retroaction

The Retroaction component makes an object act an force on the player who touches it and cause some effects.

Field Description
Type Determines the effect type of retroaction:
  • Hit the player, pushes the player away.
  • Dead, causes the player to die.
  • Hit and dead, both pushes the players away and causes the player to die.|
    |Degree|Determines the degree of pushing the player away.|

retroact
